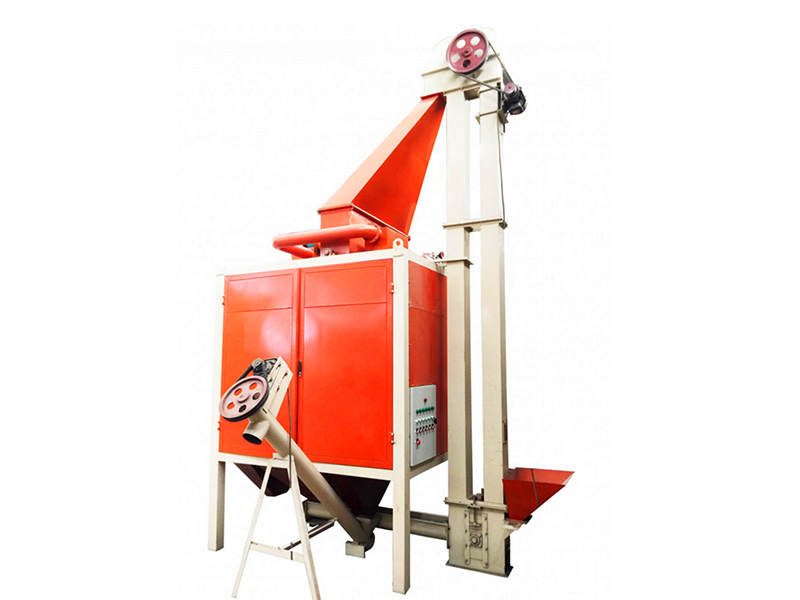

Plastic, silica gel and rubber sorting equipment:

適用范圍：

Scope of application:

主要應用于廢舊家電等各種塑料破碎后混合塑料中的硅膠、橡膠與塑料的分選、醫療輸液瓶和輸液袋中的PP塑料與硅膠分選、廢舊電瓶殼破碎后與硅膠塞分選、電器破碎料中塑料與硅膠的分選。

It is mainly used for the sorting of silica gel, rubber and plastic in the fixed plastics after the crushing of waste household appliances plastics and other plastics, PP plastic and silica gel in medical infusion bottle and infusion bag, waste battery jar and silica gel plug after breaking, plastics and silica gel in electrical broken materials.

結構特點：

Structural feature:

1.純物理分選、無任何污染，不存在環保壓力；設備能耗與運行成本低。

1. Pure physical sorting, without any pollution, there is no environmental pressure; equipment energy consumption and operation cost are low.

2.為確保設備的分選精度與可靠性，該設備的核心部件采用進口品牌，控制部分采用PLC自動化控制及11英寸人機界面觸摸屏；

2. To ensure the accuracy and reliability of the equipment sorting, the core components of the equipment adopts imported brands, the control part adopts PLC automation control and 11-inch man-machine interface touch screen;

3.內部與物料接觸部分采用不銹鋼及鍍鉻處理，增加了設備的分選精度的同時也延長了設備的適用壽命。

3. The inner part which contacts with the material adopts stainless steel and chrome plating, which increases the sorting accuracy and prolongs the service life of the equipment.

4.利用鏡面摩擦與彈跳原理，將塑料與硅膠、橡膠精準的分選，分選純度可達99%以上。

4. By using the principles of mirror friction and bouncing, the plastics, silica gel and rubber are accurately separated, and the highest sorting purity can reach more than 99%.

5.設備配置有可調節自動給料系統，物料提升系統，分選系統與自動回料與成品出料系統，一人即可操作。

5. The equipment is equipped with adjustable automatic feeding system, material lifting system, sorting system, automatic feed return and finished material discharging system. It can be operated by one person.
